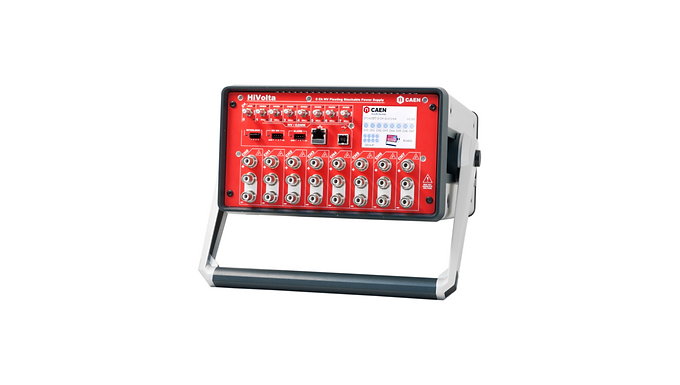

8 independent channels in a Desktop package (110/220V AC Powered)

1 kV / 1 mA (0.6W) output range

Floating Channels

SHV coaxial output connectors

Floating return up to 5kV

Stacking channels capability: up to 5kV output

Low Ripple

Under/Over Voltage alert, overcurrent and max. voltage protection

Interlock logic for board enable and Individual channel kill

1 nA Current monitor resolution (with x10 Imon-Zoom: 100 pA)

2.8″ color touch screen display

Local and Remote control (USB2.0/Ethernet)

Software Tools for easy channel management
